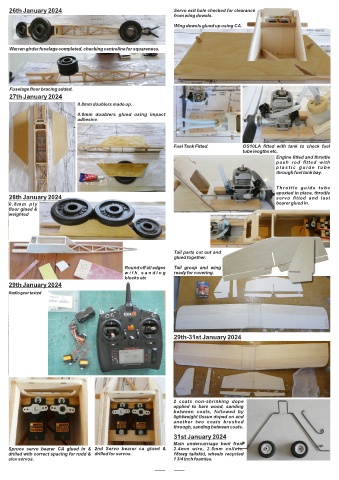

Page 23 - MFW June 2024

26th January 2024 Servo exit hole checked for clearance
from wing dowels.
Wing dowels glued up using CA.

Warren girder fuselage completed, checking centreline for squareness.

Fuselage floor bracing added.
27th January 2024
0.8mm doublers made up.

0.8mm doublers glued using impact
adhesive.

Fuel Tank Fitted. OS10LA fitted with tank to check fuel
tube lengths etc.
Engine fitted and throttle
push rod fitted with
p l a s t i c g u i d e t u b e
through fuel tank bay.

Throttle guide tube
epoxied in place, throttle
28th January 2024 servo fitted and last
0.8mm ply bearer glued in.
floor glued &
weighted

Tail parts cut out and
glued together.
Round off all edges Tail group and wing
w i t h s a n d i n g ready for covering.
blocks etc
29th January 2024
Radio gear tested

29th-31st January 2024

2 coats non-shrinking dope
applied to bare wood, sanding
between coats, followed by
lightweight tissue doped on and
another two coats brushed
through, sanding between coats.

31st January 2024
Main undercarriage bent from
Spruce servo bearer CA glued in & 2nd Servo bearer ca glued & 2.4mm wire, 2.5mm collets,
drilled with correct spacing for rudd & drilled for servos. 18swg tailskid, wheels recycled
elev servos. 1 3/4 inch foamies.
